Selecting the right ODF depends on fiber count, installation environment, modularity, and future expansion needs.

Understanding ODFs

An Optical Distribution Frame (ODF) is a centralized platform for fiber splicing, termination, patching, and cable management. It organizes fibers, protects them from mechanical stress, maintains proper bend radius, and simplifies maintenance and network expansion . ODFs are essential in data centers, telecom rooms, central offices, and FTTH networks, providing a structured environment for high-density fiber deployments .

Key Selection Criteria

1. Fiber Capacity and Port Count
   • Small-scale deployments: 12–24 ports, suitable for branch locations or light distribution .
   • Medium-scale: 48 ports, balancing density and manageability .
   • High-density: 96–144 ports or more, ideal for central distribution points or future growth .
2. Installation Environment

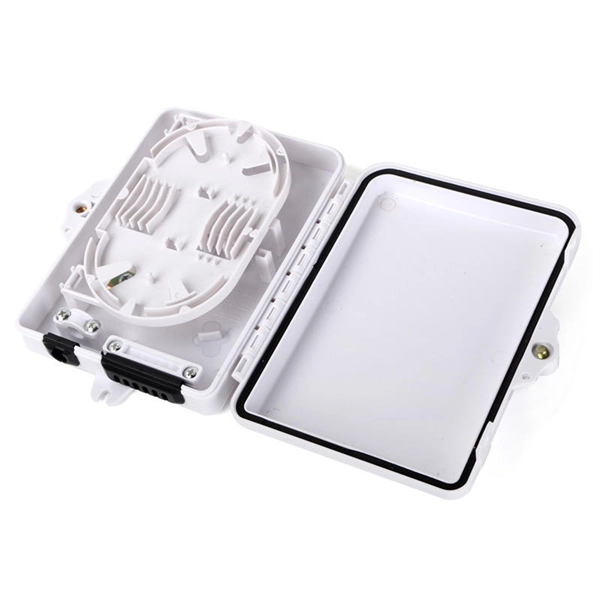

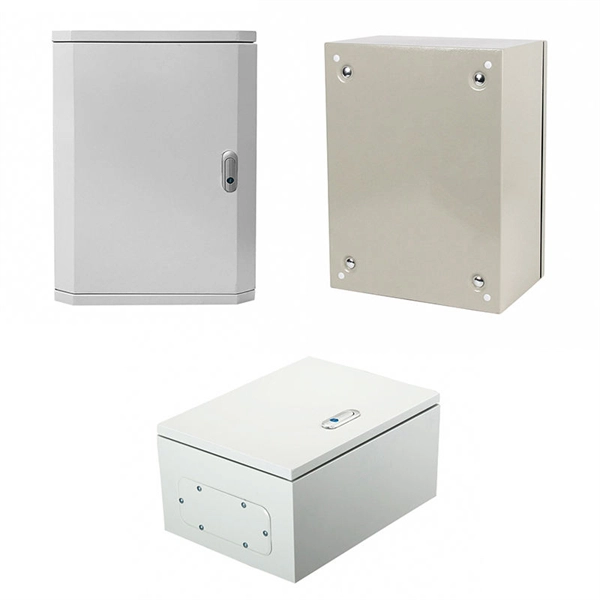

   • Wall-mounted ODFs: Compact, box-shaped units for small telecom rooms or offices .

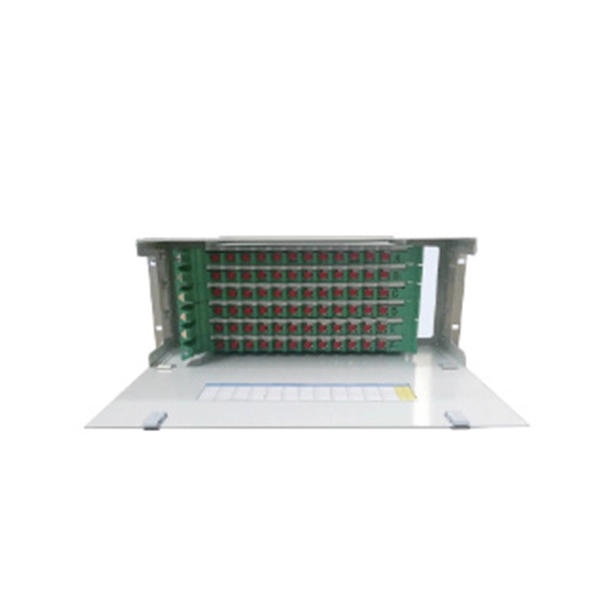

   • Rack-mounted ODFs: Standard 19-inch or 23-inch frames for high-density data centers, offering modularity and slide-out trays for easy fiber access .

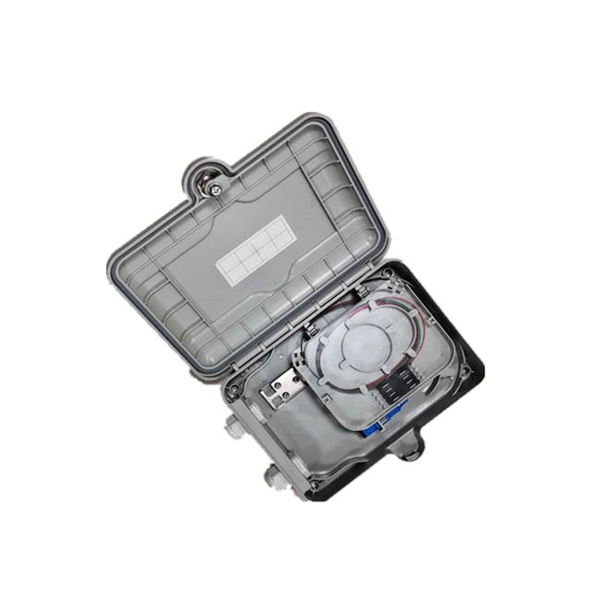

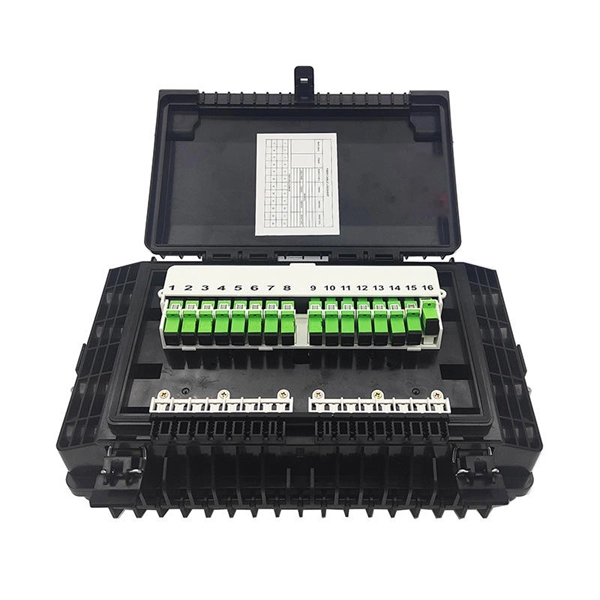

   • Outdoor ODFs: Weatherproof enclosures for external deployments .
3. Modularity and Scalability
   • Modular ODFs allow incremental expansion as fiber counts grow, reducing the need for full replacements .

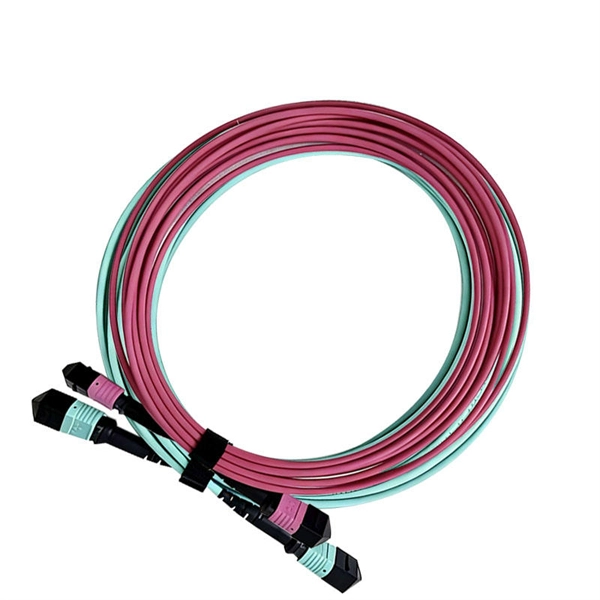

   • Ensure the ODF supports MPO/MTP integration if high-density multi-fiber connections are required .
4. Cable Management and Protection
   • Built-in splice trays for fiber splicing and slack storage.
   • Proper cable routing paths to maintain bend radius and prevent signal loss.
   • Sequentially numbered ports and clear labeling for easy identification and maintenance .
5. Future Expansion and Maintenance
   • Choose an ODF that accommodates anticipated growth to avoid disruptive upgrades.
   • Consider accessibility to both front and rear panels for efficient maintenance .
   • Evaluate internal layout efficiency to minimize Mean Time to Repair (MTTR) and simplify daily operations .

Practical Recommendations

• For small fiber terminations or branch offices, a 12-port or 24-port wall-mounted ODF is sufficient .
• For medium-density aggregation points, a 48-port rack-mounted ODF provides a balance of manageability and growth potential .
• For high-density central distribution or data centers, 96-port or 144-port ODFs with modular trays and MPO/MTP support are recommended .
• Always integrate cable management accessories such as rings, guides, and holders to maintain neat fiber routing and protect fibers from stress . Selecting the right ODF ensures network reliability, scalability, and ease of maintenance, making it a critical component in modern fiber optic infrastructure .
