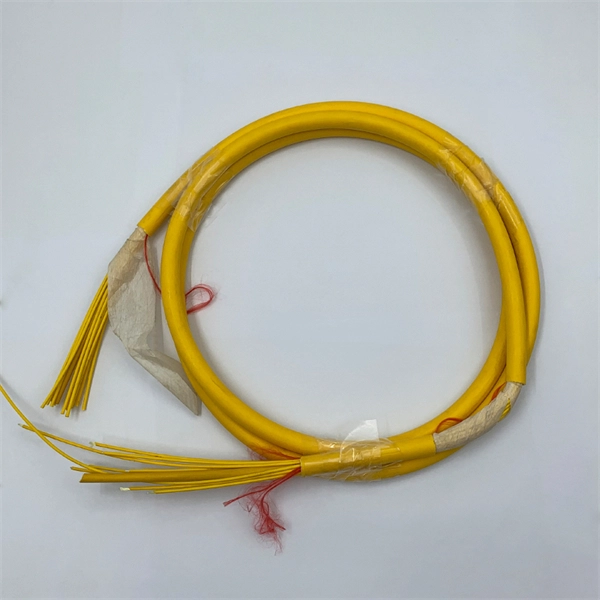

Overview of Fiber Arrays

Fiber arrays, also called fiber array units (FAUs), are linear (1D) or two-dimensional (2D) arrangements of optical fibers, typically formed at the end of a fiber bundle rather than along the entire fiber length . They are used to couple light between sources, fibers, and photonic components, such as planar waveguides on photonic integrated circuits, optical switches, or sensor arrays .

Design and Structure

• Linear Arrays (1D): Fibers are positioned in V-grooves on a solid substrate, ensuring precise alignment and low insertion loss .
• Two-Dimensional Arrays (2D): Fibers are placed in precisely drilled holes in glass, polymer, or metal plates, often forming a square lattice, though more complex patterns are possible .
• Pitch and Alignment: Fiber core pitch can be customized, with tolerances often below 1 µm for high-precision applications. Polarization-maintaining (PM), single-mode (SM), and multimode (MM) fibers can be combined in hybrid arrays .
• Special Configurations: Arrays may include 90° bending fibers for beam deflection, lidless designs for height-limited spaces, or hermetic feedthroughs for aerospace and defense applications .

Materials and Fiber Types

• Silica fibers are standard, covering spectral ranges from ultraviolet to near-infrared .
• Specialty fibers include ultra-small mode field diameter fibers, PM fibers, and hybrid combinations for coherent optical transceivers and sensing systems .

Applications

• Telecommunications: Coupling light between multiple fibers in switches, routers, and high-speed transceivers .
• Imaging and Sensing: Line-scan cameras, fiber optic temperature and pressure sensors, and medical endoscopes .
• Laser Systems: Combining multiple laser outputs for high-power applications .
• Silicon Photonics: Edge-coupled arrays interface with SiPh ICs, enabling high-efficiency optical interconnections .
• Quantum Computing: High-density FAUs with precise PM alignment support chip integration .

Customization and Precision

Manufacturers offer customizable V-groove blocks, fiber core pitch, channel numbers, and fiber types to meet specific integration needs . High-precision FAUs achieve low insertion loss, high optical return loss, and angular tolerances below 1.5°, exceeding industry standards . Arrays can scale up to 256 channels or more, supporting advanced photonic and optical networking applications .

Key Considerations in Design

• Fiber alignment accuracy to minimize insertion loss and maximize coupling efficiency.
• Pitch and spacing to match photonic components or sensor arrays.
• Material selection for spectral range, mechanical stability, and environmental conditions.
• Integration requirements for SiPh ICs, Lidar, or aerospace systems. Fiber array design is a critical component in modern photonics, enabling efficient, high-precision optical interconnections across telecommunications, sensing, imaging, and integrated photonic systems .
