Article Overview
The break point in an optical cable can be accurately located using a Visual Fault Locator (VFL) for short distances or an Optical Time-Domain Reflectometer (OTDR) for long-distance cables.
Common Indicators of a Cable Break
A break in a fiber optic cable typically manifests as signal loss, high attenuation, or complete interruption of data transmission. Physical damage, such as cuts, severe bends, or environmental stress, can also indicate potential break points along the cable route .
Tools for Locating Breaks
- Visual Fault Locator (VFL): Emits a visible red laser light through the fiber. The light escapes at the break or severe bend, making it visible. VFLs are cost-effective and ideal for short or indoor cables, typically up to a few kilometers .
- Optical Time-Domain Reflectometer (OTDR): Sends pulses of light through the fiber and measures backscattered signals to pinpoint the exact location of a fault. OTDRs are suitable for long-distance cables and provide a trace showing reflection points, attenuation, and distance to the break .
- Optical Power Meter and Light Source: Measures the power difference between input and output to detect loss in fiber continuity, helping distinguish between a break and general signal degradation .
Step-by-Step Procedure Using a VFL
- Connect the VFL to one end of the fiber cable.
- Turn on the VFL; the red laser light will travel through the fiber.
- Inspect the cable along its length. The point where the light leaks out indicates the break or damage.
- Note that VFLs are effective only for short distances and may not detect faults in long-haul cables .
Step-by-Step Procedure Using an OTDR
- Connect the OTDR to one end of the fiber and input the cable specifications (length, type, etc.).
- Run a test pulse. The OTDR sends light through the fiber and measures backscattered signals.
- Analyze the OTDR trace. Spikes or sudden drops in the trace indicate reflection points or breaks, along with the distance to the fault.
- Use the OTDR to test parameters such as fiber length, attenuation, return loss, and splicing loss for a comprehensive assessment .
Additional Tips

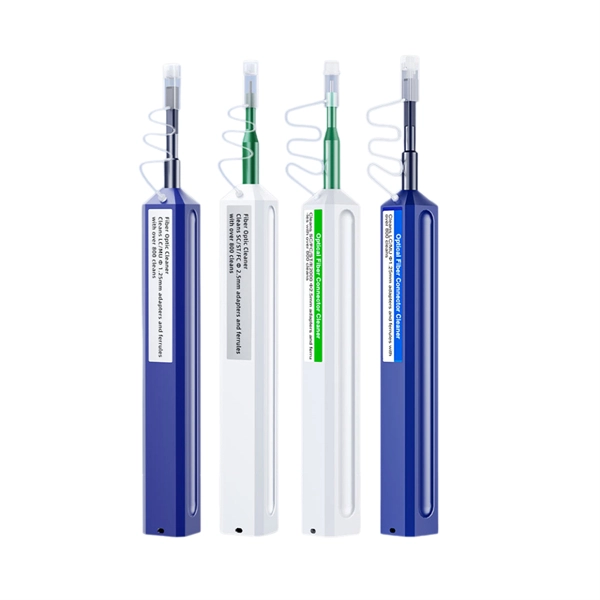

- Always clean connectors and patch cords before testing to avoid false readings.
- Respect the minimum bend radius of the fiber to prevent additional damage.
- For long-distance or critical networks, OTDR testing is preferred due to its precision and ability to map the entire fiber link . By combining these tools and procedures, technicians can accurately locate and assess breaks in optical cables, enabling timely repair and minimal network downtime.
