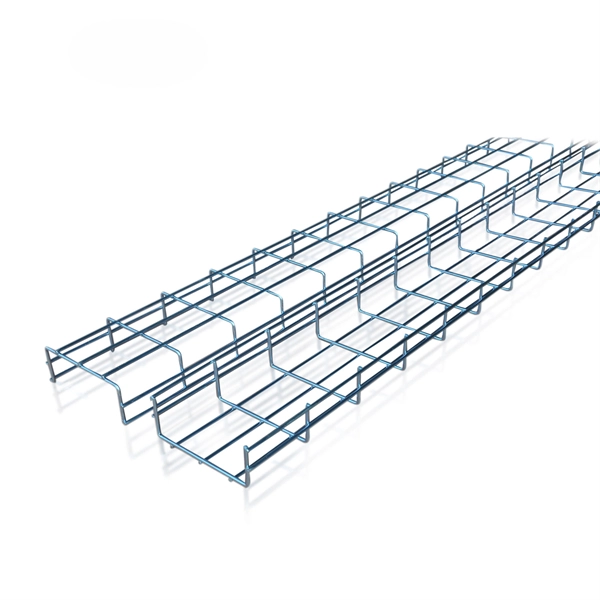

Anti-corrosion cable trays are classified according to ISO 12944 corrosion categories (C1 to C5 and CX), which define environmental aggressiveness and guide protective coating selection.

Corrosion Resistance Classification

Cable trays are exposed to varying environmental conditions, from indoor offices to offshore platforms. ISO 12944 provides a standardized framework for corrosion protection of steel structures, including cable trays, by defining atmospheric corrosivity categories: C1 (very low) to C5 (very high) and CX (extreme) for offshore or highly aggressive environments . These categories are based on BS EN ISO 12944-2 and BS EN ISO 9223, which quantify corrosion rates and environmental severity .

• C1: Indoor, dry, minimal corrosion risk.
• C2: Slightly polluted, low humidity, e.g., offices or warehouses.
• C3: Moderate, urban or coastal areas with low salt exposure.
• C4: High, industrial or coastal zones with moderate salt exposure.
• C5: Very high, industrial or marine environments with high humidity and salt.
• CX: Extreme, offshore platforms or highly aggressive tropical environments .

Protective Coating Systems

The corrosion grade determines the coating system and material selection for cable trays. Common protection methods include:

• Hot-dip galvanizing (HDG): Immersion in molten zinc, providing sacrificial protection; suitable for C3–C5 environments but less effective for small fasteners or thin elements due to variable thickness .
• High Resistance (HR) alloys: ZnAl, ZnMg, or ZnNi coatings offer enhanced durability and resistance to thermal shock, increasingly replacing HDG in modern applications .
• Zinc-rich coatings: Applied by spraying or centrifuging at lower temperatures, providing a thinner but effective protective layer .

Durability and Testing

ISO 12944 also links environmental category to expected durability, guiding maintenance intervals and coating thickness. For example, a C4 environment may require coatings designed to last 10–15 years, while CX environments may target 25+ years . Standardized tests for cable trays include:

• Salt spray test: Simulates marine or industrial corrosion conditions.
• Sulfur test: Evaluates resistance to industrial pollutants.
• IEC 61537 compliance: Ensures red rust (Fe₂O₃) covers less than 5% of the surface after testing .

Practical Application

When specifying anti-corrosion cable trays, engineers should:

1. Identify the environmental corrosivity category (C1–CX).
2. Select a coating system compatible with the category and expected lifespan.
3. Verify material and coating performance through standardized tests.
4. Consider maintenance schedules based on durability targets.

By following ISO 12944 and related standards, cable trays can achieve long-term corrosion resistance, ensuring structural integrity and reducing maintenance costs in industrial, coastal, or offshore installations .
