Interconnection between optical cable equipment rooms requires careful planning of fiber backbone cabling, proper room layout, adherence to standards, and protection against environmental and electromagnetic interference.

Equipment Room Planning

• Location and Accessibility: Equipment rooms should be centrally located for easy access to cabling pathways and should not share space with building services that could interfere with telecommunications systems, such as water supplies or cleaning areas ( ).
• Environmental Control: Maintain a stable temperature (around 68°F) and ensure proper ventilation. Avoid sprinkler heads or water sources above the room.
• Security and Access: Restrict access to authorized personnel only to protect sensitive equipment and cabling ( ).

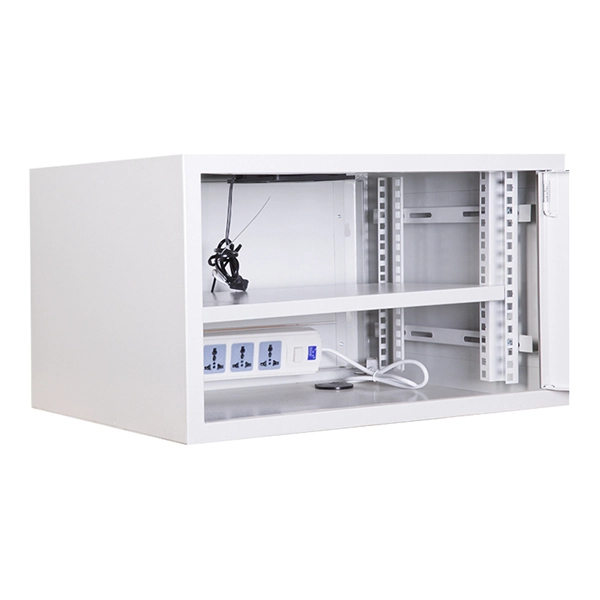

• Space Requirements: Allocate sufficient floor space for equipment, auxiliary devices, and battery backups. Include wall space for cable management and racks, and ensure adequate lighting ( ).

Optical Fiber Backbone Cabling

• Cable Types: Use single-mode fiber for long-distance interconnections and multimode fiber for shorter intra-building connections. Extend both types into the backbone to future-proof the system ( ).
• Distance and Pathways: Maintain maximum backbone distances according to standards (e.g., 90 meters for copper, longer for fiber) without intermediate cross-connects for uninterrupted runs ( ).
• Routing and Protection: Route cables through dedicated pathways, avoiding electromagnetic interference (EMI) sources. Use conduits, trays, or raceways to protect fibers from mechanical damage ( ).
• Bending Radius: Observe minimum bending radius at all times to prevent fiber damage, especially during installation and splicing ( ).

Splicing and Termination

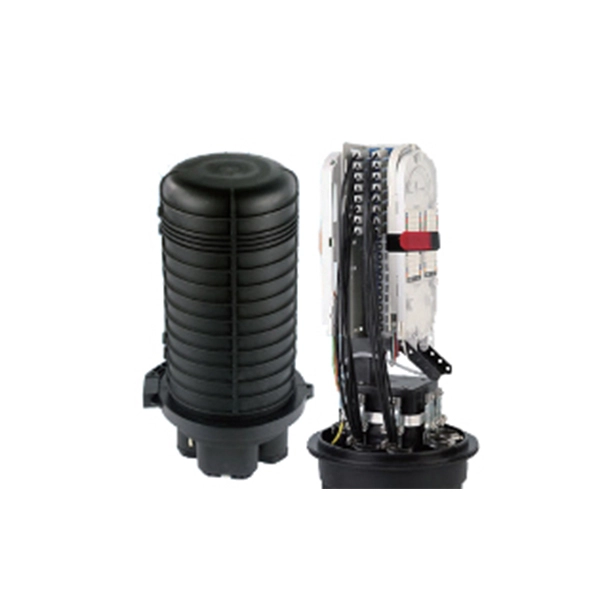

• Splice Locations: Determine splice positions based on cable length, tower or room access, and maximum available fiber length ( ).
• Termination Points: Use main distributing frames (MDFs) or cross-connects in each equipment room to terminate outside cables, intra-building backbone cables, and connections to equipment ( ).
• Documentation: Maintain complete records of cable runs, terminations, and splices in paper or database systems for future maintenance and troubleshooting ( ).

Installation and Handling

• Transport and Storage: Transport fiber drums vertically, secure cable ends, and avoid dropping or rolling drums uncontrolled. Store drums upright and avoid laying them on their sides ( ).
• Pulling and Tensioning: Use appropriate pullers, tensioners, anti-twisting counterweights, and swivels to prevent fiber stress during installation ( ).
• Testing and Certification: Verify optical transmission characteristics after installation and certify the system according to standards to ensure performance ( ).

Standards Compliance

• Follow international and regional standards such as ISO/IEC 11801, TIA/EIA-568, and local regulations for structured cabling and optical fiber installation ( ).
• Ensure compliance with safety and regulatory agencies (UL, CSA, FCC, IEC) for equipment and cabling ( ). By following these guidelines, optical cable equipment rooms can be interconnected efficiently, safely, and in compliance with industry standards, ensuring reliable high-bandwidth communication between rooms.
