Distribution boxes must be installed in dry, accessible locations with proper grounding, protective devices, and compliance with IEC, NEC, or local electrical codes.

Site Selection and Placement

A distribution box should be installed in a dry, well-ventilated area away from corrosive, flammable, or explosive substances to prevent overheating and equipment damage . It should be close to the power supply to minimize power loss and ensure safety . The recommended mounting height is typically 1.5 to 1.8 meters from the floor for easy operation and inspection, with adjustments for elderly or handicapped users in residential settings . The box should be firmly fixed using brackets or screws to prevent movement due to vibration or accidental impact .

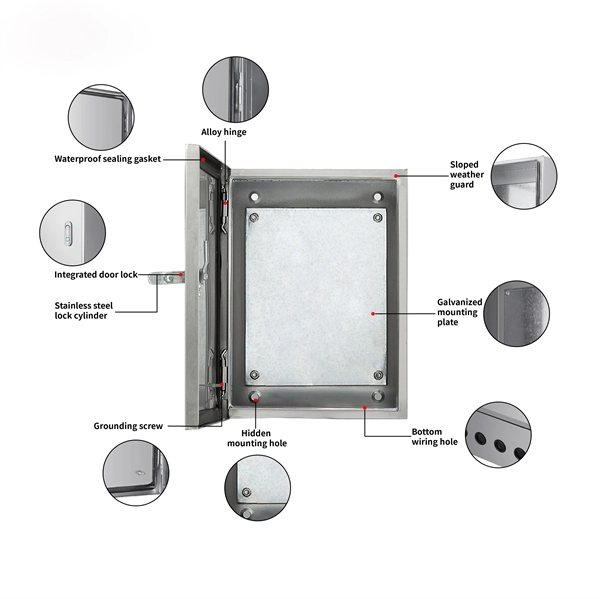

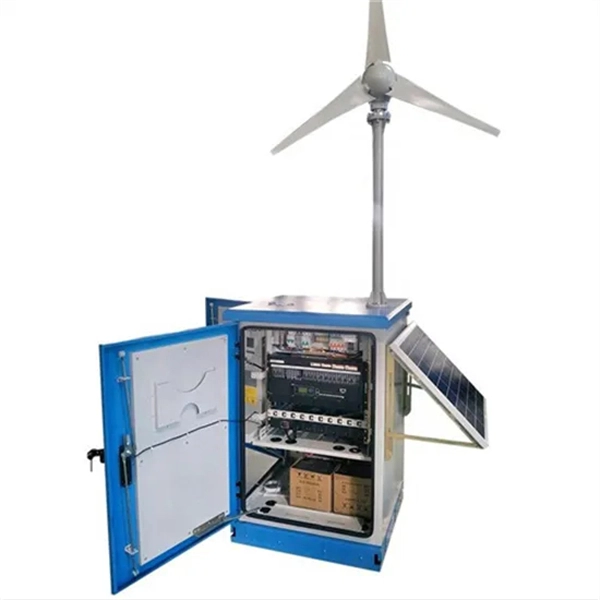

Enclosure and Protection

The distribution box enclosure protects internal components from dust, moisture, and mechanical damage. IP or NEMA ratings indicate the level of protection, with higher ratings required for outdoor or industrial environments . Materials can be steel for durability in harsh conditions or plastic for indoor use . Ensure the enclosure allows adequate ventilation to prevent overheating.

Internal Components and Wiring

Inside the box, components include circuit breakers (MCBs), residual-current devices (RCDs/RCCBs/RCBOs), fuses, busbars, terminal blocks, and surge protection devices . Wiring should use high-temperature resistant copper conductors with cross-sectional areas suitable for the load . All wiring must be neatly organized, properly insulated, and clearly labeled for future maintenance . Cable inlets and cover joints should be sealed to prevent gaps .

Safety and Grounding

All metal parts of the box, electrical boards, and appliances must be properly grounded . The protective neutral wire should be securely connected through the terminal board. Protective devices like MCBs, RCDs, RCBOs, fuses, and surge protectors should be installed to isolate faults, prevent overloads, and protect circuits . Each outgoing circuit should have its own protection.

Compliance with Standards

Installation must comply with international and local standards, such as IEC 61439, IEC 60364, NEC, UL, CE, or BS 7671 . Panels should be readily accessible for operation, maintenance, and inspection. Industrial boards may require IP54 protection and specific mounting dimensions (e.g., width ≤1.5 m, height ≤1.2 m, depth ≤0.5 m), .

Pre-Installation and Testing

Before powering on, perform visual inspections and multimeter tests to verify correct wiring and grounding . Operators should wear personal protective equipment such as insulating gloves, safety glasses, and slip-resistant shoes . Record installation details for future inspections and schedule regular maintenance to ensure long-term reliability.

Summary

Proper distribution box installation ensures safety, compliance, and reliable power distribution. Key points include correct site selection, secure mounting, proper wiring, grounding, protective devices, and adherence to IEC, NEC, or local codes. Labeling, modular design, and regular inspections further enhance safety and maintainability .
